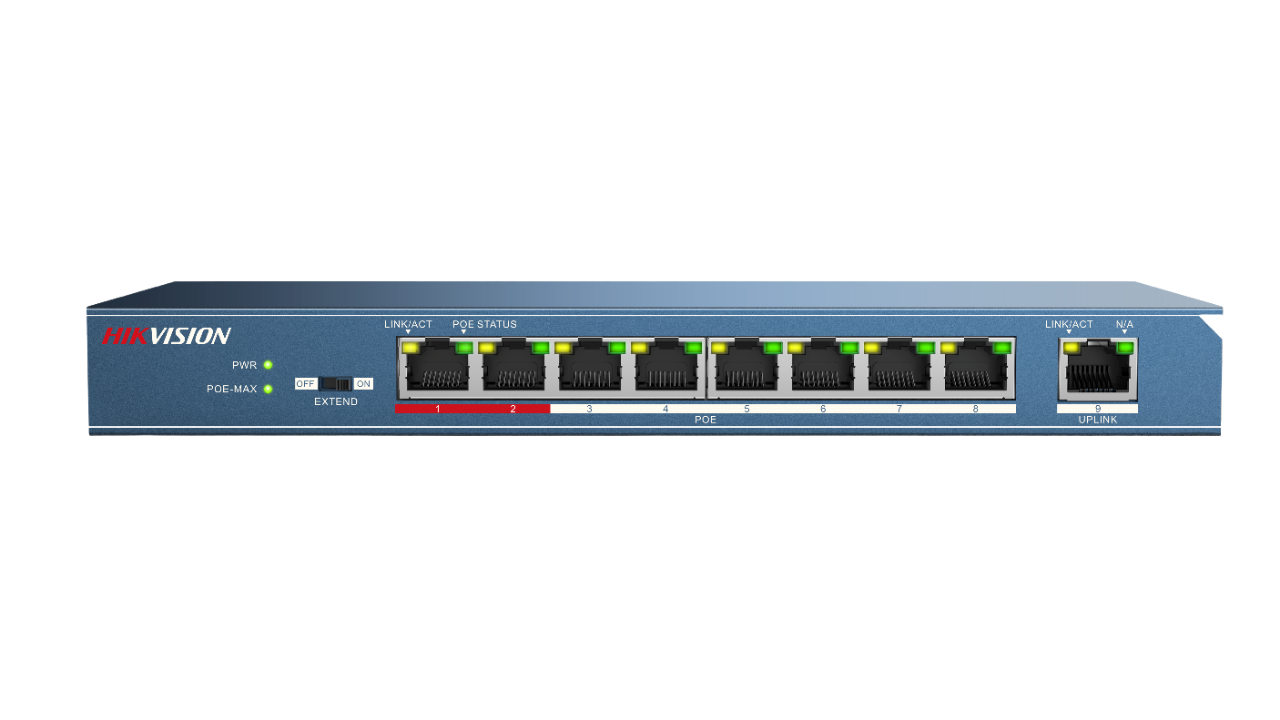

Hikvision 8-Port 100 Mbps Unmanaged PoE Switch

Hikvision 8-Port 100 Mbps Unmanaged PoE Switch

• IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant
• 8 x 10/100Mbps Auto-MDIX PoE ports
• Provides up to 30 watts per PoE port
• PoE power budget 100W
• 4 kV surge protection for PoE ports
• IEEE 802.3x flow control support
• Plug-and-play installation
• 1.8 Gbps switching fabric
• 1.25 Mbits RAM Data Buffer
• 4K MAC address entries
• Sturdy metal enclosure

Specifications:

• General
• Storage TemperatureTemperature: -40℃-70℃
• Power Supply51V DC, 2A
• 0.57kg
• Storage HumidityHumidity: 5%-90% , non-condensing
• Surge Protection4KV
• Power Consumption≤102W

• Performance
• Switching Capacity1.8Gbps
• Store-And-ForwardStore-and-forward
• Max. Forwarding Rate1.34Mpps

• PoE
• Working ModeExtend On:250m,10M,CAT 5e, Extend Off:100m
• PoE StandardIEEE802.3af, IEEE802.3at
• PoE Power Budget100W
• PoE Port8, 10/100Mbps RJ45 ports

• Port
• Uplink Port1, 100M Ethernet Port
• Network Ports9
• High-Priority PortPorts 1-2

• Standard
• Network Protocol IEEE802.3,802.3u,802.3x, 802.3af, 802.3at

• Performance
• Switching Capacity1.8Gbps
• Max. Forwarding Rate1.34Mpps
• Store-And-ForwardStore-and-forward
