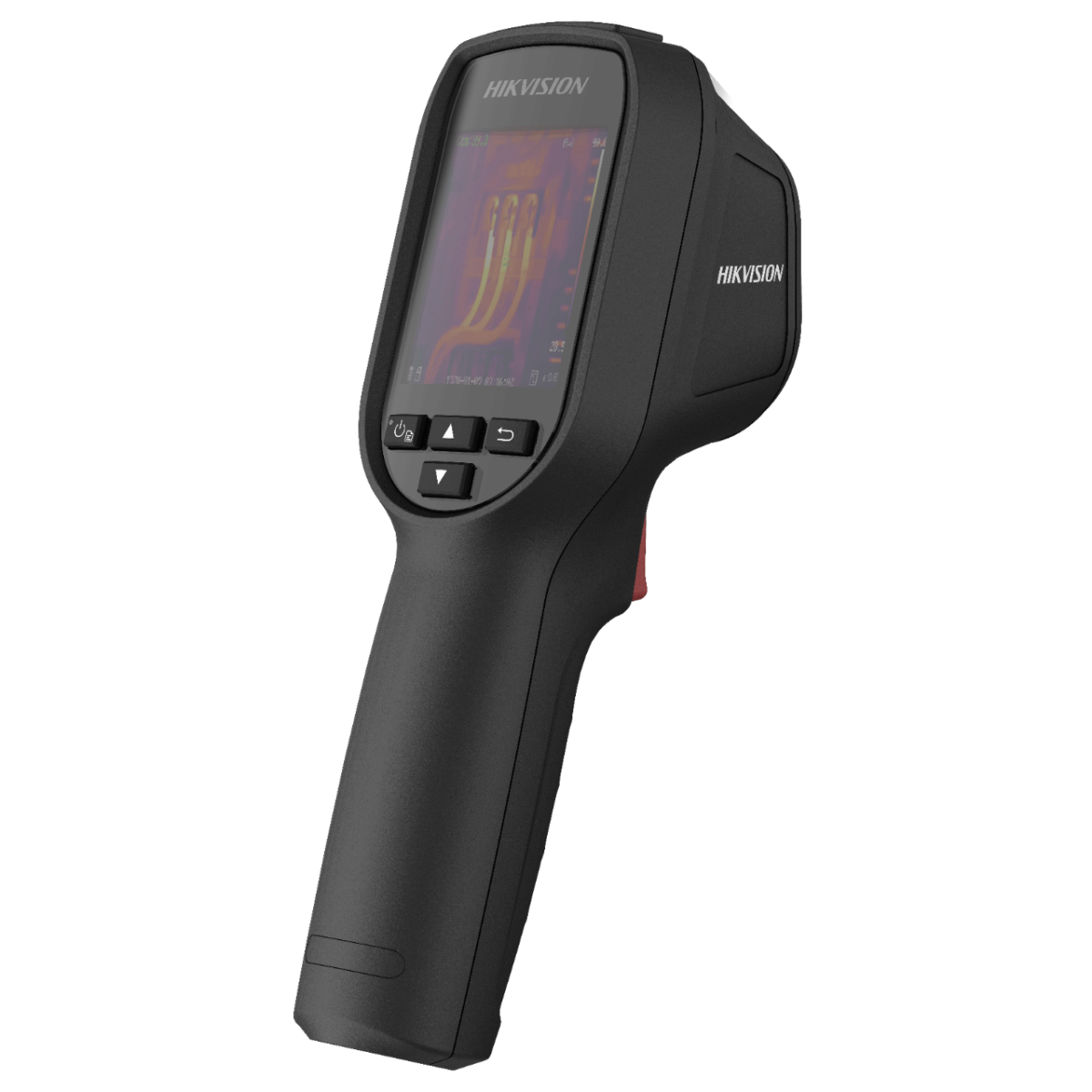

Hikvision Fever Screening Thermographic Handheld Camera

Hikvision Fever Screening Thermographic Handheld Camera

• High sensitivity sensor with 160 x 120 resolution
• High quality 320 x 240 resolution 2.4'' LCD display
• Up to 4 palettes
• Wide temperature measurement range: 30°C - 45°C
• High temperature measurement accuracy: Up to ±0.5°C
• Built-in rechargeable Li-ion battery
• Up to 8 hours continuous operation

Specifications:

• Thermal Module
• Image SensorVOx Uncooled Focal Plane Arrays
• Resolution160×120
• Pixel Interval17μm
• Response Waveband8μm to 14μm
• NETDLess than 40 mK (@25°C,F#=1.1)
• Focal Length3.1mm
• Field Of View50° × 37.2° (H × V)
• IFOV5.48 mrad
• Image Frequency25 hz
• ApertureF 1.1

• Image Display
• Monitor320 × 240 resolution 2.4'' LCD display
• PalettesBlack hot, White hot, Rainbow, Ironbow

• Measurement And Analysis
• Thermographic RangeFrom 30 °C to 45 °C
• Accuracy± 0.5 °C (Without Black Body)

• General
• Hardware InterfaceMicro USB
• Power Supply3.7 V DC/0.4 A
• Power ConsumptionLess than 1.2 W
• Working Temperature10 °C to 35 °C
• Protection LevelIP54
• 350 g (0.77 lb)
• Dimension196 mm × 117 mm × 59 mm (7.7 ″ × 4.6 ″ × 2.3 ″)

• System Function
• CaptureThermal image
• StorageReplaceable memory card (default 8G, support up to 128G storage)
• Battery TypeRechargeable Lithium Battery
• Battery Operating Time8 hours continuous running
