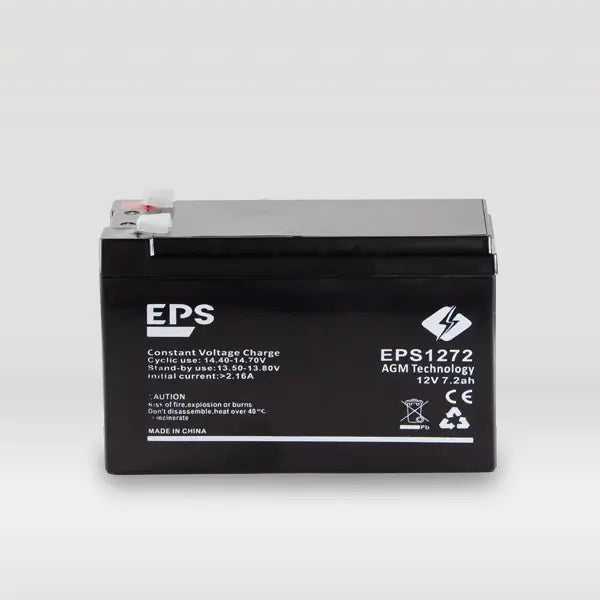

7.2Ah 12v Lead Acid Battery

7.2Ah 12v Lead Acid Battery

R 229.00 ZAR
R 229.00 ZAR
Sale Sold out
Shipping calculated at checkout.

7.2Ah 12v Lead Acid Batter

The EPS1272 7.2Ah 12v Lead Acid battery offers 5 years full maintenance free design life. With optimum design and good reliability, this series is highly suited for security and alarm systems, UPS systems, emergency light systems and other small backup applications.

Voltage and Designations

  • Nominal Voltage (V) 12 (6 Cells per unit)
  • Designed Floating Life (20℃) 5 Years
  • Nominal Capacity (20℃) 7.2 Ah @ 20HR-rate (to 1.75Vpc)
  • Terminal Type Fasten Tab F1
  • Internal Resistance Approximately 0.02 mΩ (fully charged @ 20℃)
  • Charge Current 2.16A
  • Discharge Current (5S) 105A
  • Short Circuit Current 600A
  • Self-Discharge Approximately 3% per month @ 20℃

Additional information

WEIGHT 2100 g
DIMENSIONS 151 × 65 × 99 mm


Technical Specifications

Nominal Voltage (V) 12 (6 cells per unit)
Designed Floating Life (20°C) 5 Years
Nominal Capacity (20°C) 7.2 Ah @20HR-rate (to 1.75Vpc)
Dimension (mm) L151mm x W65mm x H99mm
Approx. Weight 2.15kg
Terminal Type Fasten Tab F1
Internal Resistance Approx. 0.02 Ohm (fully charged @ 20°C)
Max Charge Current 2.0A
Max. Discharge Current (55) 105A
Short Circuit Current 600A
Self-Discharge Approx. 3% per month @ 20°C
Ambient Temperature Discharge: -15~50°C



Charge:      -15~40°C

Storage:     -15~40°C
Float Charge Voltage (20~25°C) 13.6-13.8V (-3mV/ cell / °C)
Equalize and Cycle Use Charge Voltage (20~25°C) 14.4—14.8V (-5mV/ cell / °C)
Container Material ABS (UL94-V0 Optional)
