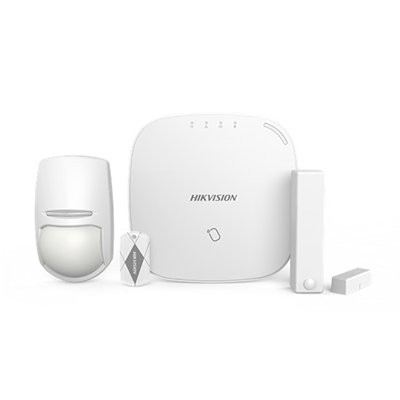

Hikvision 868MHz Wireless control Panel Kits with IC Cards

Hikvision 868MHz Wireless control Panel Kits with IC Cards

• Supports up to 32 wireless inputs, 4 wireless output expanders
• Offers multiple communication methods: LAN + Wi-Fi + GPRS
• Up to 2-ch. on-board video verification
• Offers reliable protection utilizing two-way wireless technology
• Wireless connection reduces installation time
• Communicates up to 800 m (in open areas)
• Supports arming/disarming by swiping card with built-in proximity reader
• Contains DS-PWA32-HGR (White, 868MHz) x 1
• DS-PD2-P10P-W x 1
• DS-PD1-MC-WWS x 1

Specifications:

• Detection Performance
• Detection Range10m(DS-PD2-P10P-W(868MHz))
• Detection Angle85°(DS-PD2-P10P-W(868MHz))
• Velocity Range0.3m/s ~ 3.0m/s(DS-PD2-P10P-W(868MHz))
• Pet Immunity24kg(DS-PD2-P10P-W(868MHz))

• Software Features
• Partition4
• Onboard Video ClipsUp to 2-ch onboard video
• Tamper-ProofTampering alarm；Front, rear, and bracket tamper signal input；Front and rear
• ScheduleAuto Arm/Disarm Schedule
• SMS NotificationSupport
• Phone Call NotificationSupport
• Phone Numbers8
• Signal Strength Indication；Signal Strength Indicators (SSI)；
• Firmware Undate ToolsWeb client / iVMS-4200 / Hik-Connect
• Configuration ToolsWeb client / iVMS-4200 / Hik-Connect
• ApplicationiVMS-4200, and mobile APP Hik-connect
• ProtocolSIA - Contact ID; EHome v5.0
• IC Card12
• User13 (1 installer, 1 administrator, and 11 general user)

• Hardware Features
• Alarm Input32
• Alarm Output32
• IndicatorLED

• RF Transmission
• RF Frequency868MHz
• RF Modulation2GFSK
• RF Range800m (Open Area)

• Audio
• Audio Output1, 1.5W

• Electrical Characteristics
• Power Supply5 VDC，10 W
• Battery Type4520 mAh lithium backup battery（DS-PWA32-HGR(868MHz)） 1×CR123A(DS-PD2-P10P-W(868MHz)) 1×CR123A, 3.0V(DS-PD1-MC-WWS(P)(868M))
• Battery Life SpanRechargeable lithium battery, supports up to 12h power supply ； 2 years Battery life(DS-PD2-P10P-W(868MHz)、(DS-PD1-MC-WWS(P)(868M)）
• Power Consumption< 5.6 W

• Wireless Transmission
• Wired Network10M/100M Self-adaptive
• Network EncryptionAES-128 encryption
• Cellular NetworkGPRS
• Wi-Fi Standard802.11b/g/n
• Wi-Fi EncryptionSupported
• Wi-Fi Channel2.4 G

• General
• Operation Temperature–10 °C to 55 °C （DS-PWA32-HGR（868MHz））；-10℃~+40℃（DS-PD2-P10P-W(868M））；-10℃~+40℃（DS-PD1-MC-WWS(P)（868MHz））
• Operation Humidity10% to 90%
• Shell MaterialPC+ABS
• Dimension(WxHxD)155 × 155 × 35mm（DS-PWA32-HGR（868MHz））；117mm*69mm*50mm（DS-PD2-P10P-W(868M））；27mm x 104mm x 25mm（DS-PD1-MC-WWS(P)（868MHz））
• 125g（DS-PD2-P10P-W(868M））
• Application Scenarioindoor
• ColorWhite
• Installation Height1.8m ~ 2.4m（DS-PD2-P10P-W(868M））
• BracketIncluding 1 x Ceiling mounting bracket, 1 x Wall mounting bracket, for DS-PD2-P10P-W(868MHz)

• Device Management
• Keyfob8
• Wireless Siren4
• Tag Reader4
• Keypad4
