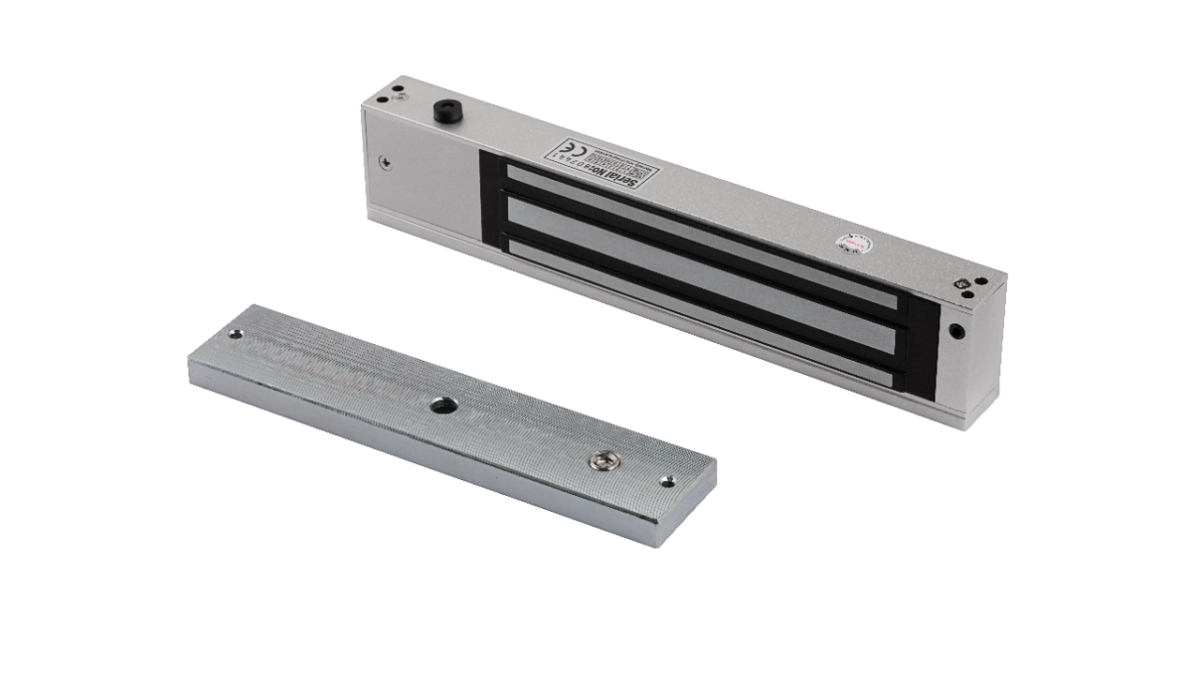

Hikvision Magnetic Lock

Hikvision Magnetic Lock

• Magnetic lock supports static linear thrust of 600kg
• Power supply can be customized to be 12VDC or 24VDC, (default voltage is 12VDC)
• Equipped with internal voltage dependent resistor (MOV)
• LED indicator displays door lock status
• Abrasion-proof materials；S model for single-door, D model for double-door.

Specifications:

• General
• IndicatorRed (Door is Unlocked) Green (Door is Locked)
• Power Supply

  DC12V/500mA

  DC24V/250mA

• Working Temperature-10°C to +55°C (14°F to 131°F)
• Working Humidity0 to 95% (Relative Humidity)
• Dimensions

  Lock body: 240×49×25.5mm (9.45×1.93×1.00")

  Armature Plate: 180×38×11mm (7.1×1.5×0.4)"

• 2.1kg (4.63lb)
• Material

  Shell: hard Anodizing Electroplating Operated

  Lock Body: eco-friendly Zinc with Electroplating Operated

  Armature Plate: eco-friendly Zinc with Electroplating Operated

• ThrustMax. 300kg Linear Thrust
• Door TypeSingle leaf,Double leaf, Wooden Door, Glass Door, Metal Door, Fireproof Door
• Signal OutputDry Contact Signal Output, Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking
