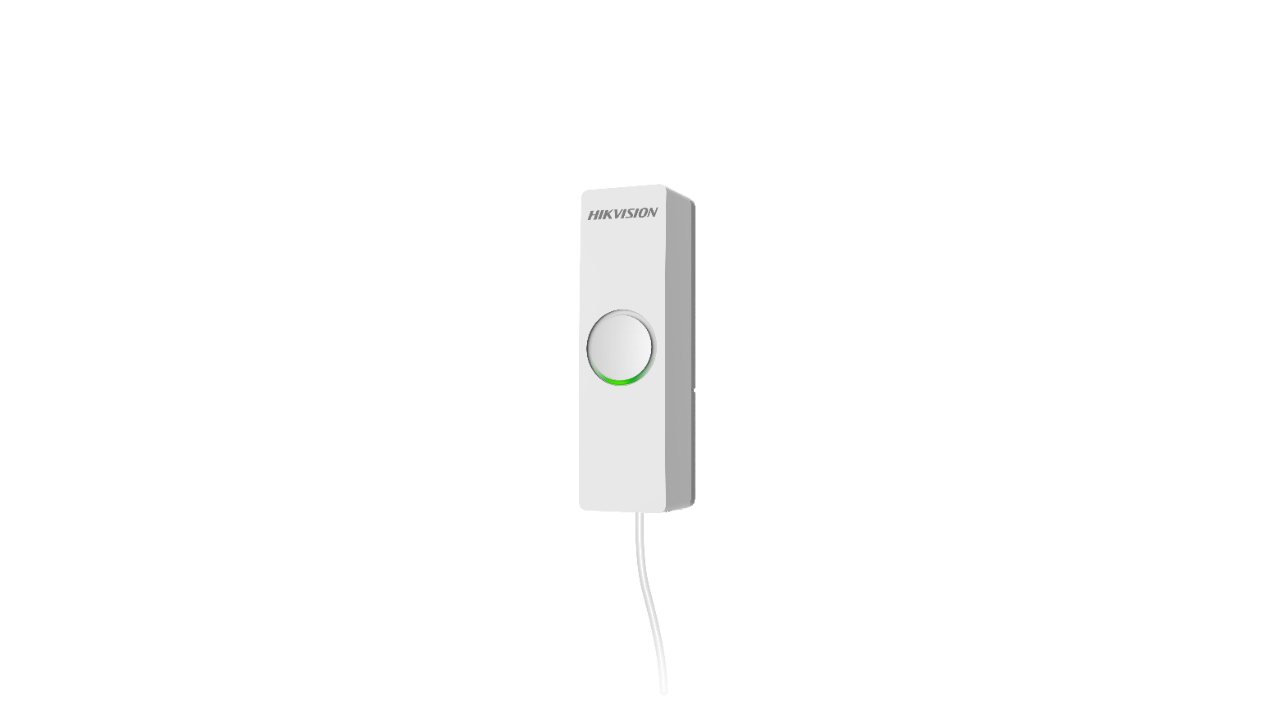

Hikvision wired to wireless input expander

Hikvision wired to wireless input expander

• RF 868MHz, 1-input expander
• Communicates up to 800 m (in open areas)
• Status LEDs: One dual-color indicator

Specifications:

• Hardware Features
• Tamper-ProofFront and rear
• Power Switch1 switch for turning on/​off LED

• Electrical Characteristics
• Power SupplyCR123 A/3 V
• Operation Humidity10% to 90% (non-condensing)
• Operation Temperature- 10 °C to 55 °C (14 °F to 131 °F)
• Battery Life Span2 years

• Wireless Transmission
• RF Speed4.8 kbps
• RF Frequency868MHz
• RF Distance800 m (open area)

• Display
• Indicator1 red & green LED

• General
• Installation MethodWall mounting
• Dimension(WxHxD)84 mm × 25 mm × 21 mm (2.52" × 0.75" × 0.63")
• Application ScenarioIndoor
• Shell MaterialPC + ABS
• 38.5 g (0.085 lb)

• Device Management
• Alarm Input1 NC input
