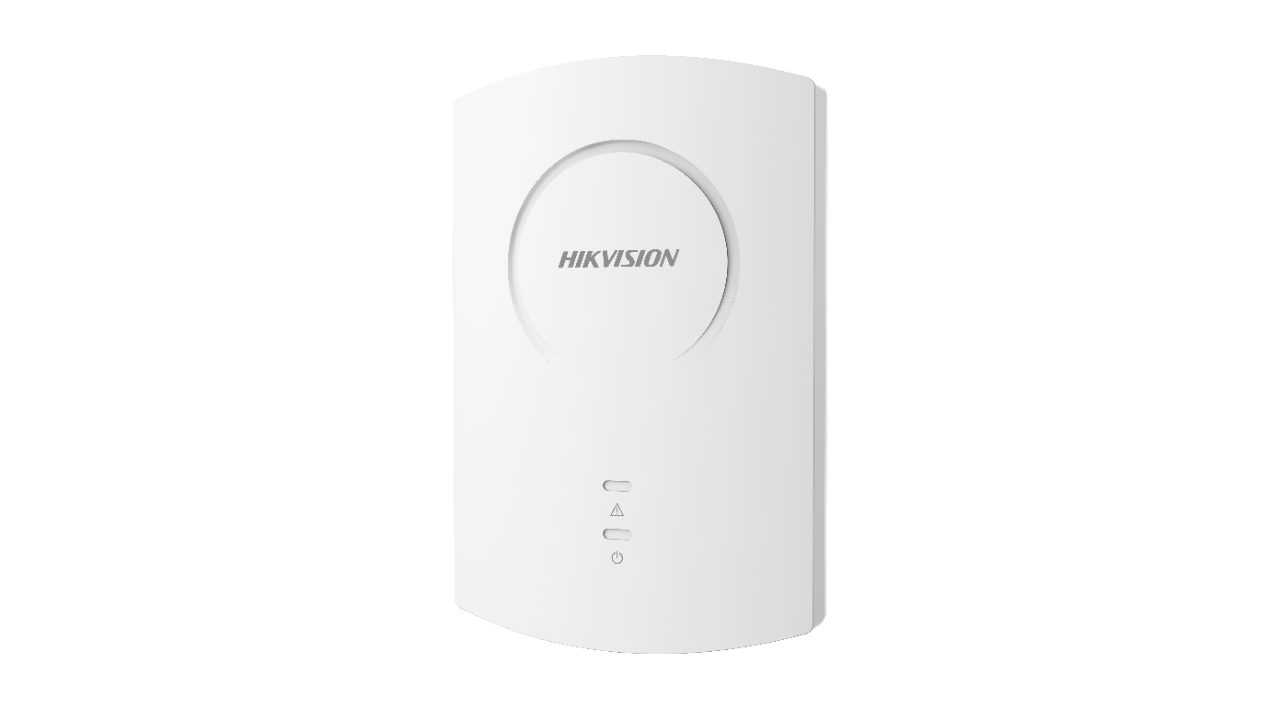

Hikvision wireless output expander

Hikvision wireless output expander

• RF 868MHz, 8-output expander
• Communicates up to 800 m (in open areas)
• 2 status LEDs

Specifications:

• Hardware Features
• Tamper-ProofFront and rear
• Power Switch1 onboard switch for turning on/​off LED

• Electrical Characteristics
• Power Supply9 to 15 VDC
• Operation Humidity10% to 90% (non-condensing)
• Operation Temperature–10 °C to 55 °C (14 °F to 131 °F)

• Wireless Transmission
• RF Speed4.8 kbps
• RF Frequency868MHz
• RF Distance800 m (open area)

• Display
• Indicator3 LED: power (green), fault (orange), signal strength (green & orange)

• General
• Installation MethodWall mounting
• Dimension(WxHxD)160 mm × 105 mm × 28 mm (6.29" × 4.13" × 1.10")
• Application ScenarioIndoor
• Shell MaterialPC + ABS
• 165.0 g

• Device Management
• Alarm Output8-ch, capacity: 30 VDC/1 A
• Relay Output8, NO/NC
