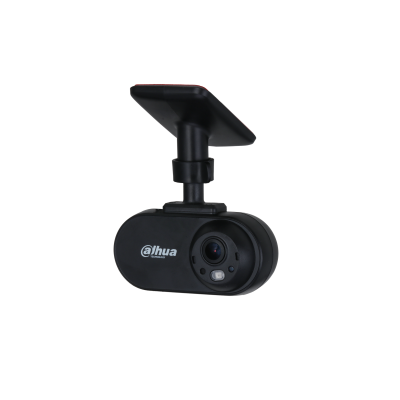

DAHUA 2MP Double-lens HDCVI Mobile IR Camera

Camera

Image Sensor

1/2.7 inch CMOS

Max. Resolution

1920 (H) x 1080 (V)

Pixel

2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

S/N Ratio

>65 dB

Min. Illumination

0.02 Lux/F2.0, 30IRE, 0 Lux IR on

Illumination Distance

3 m (9.8 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1 (IR)

Pan/Tilt/Rotation Range

Pan: 30°

Tilt: 30°

Rotation: 360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

Front: 2.8 mm

Rear: 2.1 mm

Max. Aperture

F2.0

Field of View

Front: H: 109°; V: 58°; D: 127°

Rear: H: 132°; V: 69°; D: 164°

Iris Type

Fixed iris

Close Focus Distance

0.5 m (1.64 ft)

DORI Distance

Detect

Observe

Recognize

Identify

Front

42.8 m (140.4 ft)

17.7 m (58.1 ft)

8.6 m

(28.2 ft)

4.3 m

(14.1 ft)

Rear

35.5 m (116.5 ft)

14.2 m (46.6 ft)

7.1 m

(23.3 ft)

3.5 m

(11.5 ft)

Video

Frame Rate

CVI: 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps;
AHD: 1080p@25/30fps; 720p@25/30fps;
TVI: 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps;
CVBS: 960H

Resolution

1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480)

Day/Night

Front: Color

Rear: Electronic

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE/FCC

Port

Audio Interface

Built-in Mic

Video Output

2-channels CVI/CVBS/AHD/TVI switchable video output (Aviation connector) (Yellow: front camera/black: rear camera)

Aviation Connector Interface

1-power

2-video ground

3-power ground

4-video

Power

Power Supply

12V ±30% DC

Power Consumption

Max 1.9W (12V DC, IR on)

Environment

Operating Temperature

–40°C to +60°C (–40°F to 140°F); <95% (non-condensation)

Storage Temperature

–40°C to +60°C (–40°F to 140°F); <95% (non-condensation)

Structure

Casing

Plastic

Dimensions

115.8 mm × 99.5 mm × 50.2 mm (4.56" × 3.92" × 1.98")

Net Weight

0.17 kg (0.37 lb)

Gross Weight

0.28 kg (0.37 lb)
