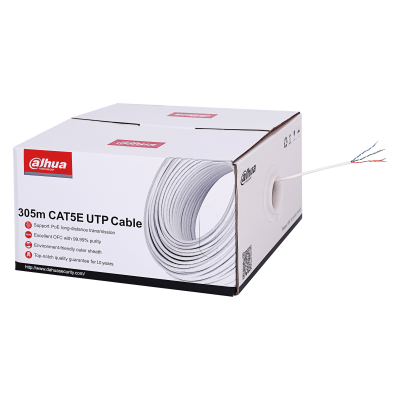

Dahua 305m UTP CAT5E Cable
Dahua 305m UTP CAT5E Cable
Regular price
R 1,720.00 ZAR
Regular price
Sale price
R 1,720.00 ZAR
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Dahua 305m UTP CAT5E Cable
>305m UTP CAT5E;
>Support PoE long-distance transmission;
>Excellent OFC with 99.99% OFC(oxygen free copper) purity;
>Environmentally-friendly outer sheath, meet the CPR E/ UL CM class;
>Top-notch quality guarantee for 10 years.
Specifications
|
Model |
DH-PFM920I-5EU-C |
DH-PFM920I-5EU-U |
|
|
Structure |
|||
| Conductor |
Material |
OFC(oxygen free copper) |
|
| Structure |
4P*0.5±0.01mm |
||
| Insulation |
Material |
HDPE |
|
| Min. average thickness |
0.195mm |
||
| Diameter |
0.9mm0.05mm |
||
| Color(4 Pairs) |
Orange, white/orange; green, white/green; blue, white/blue; brown, white/brown |
||
| Rip cord |
Yes |
||
| Jacket |
Material |
PVC, meet the requirement of CPR E class |
PVC, meet the requirement of UL CM class |
| Min. average thickness |
0.40mm |
||
| Diameter |
5.0±0.50mm |
||
| surface |
Smooth, full and tight |
||
| Color |
White |
||
| General |
Length |
305m(1000.66ft) |
|
| N.W. |
8.75kg(19.29lb) |
||
| Packaging dimension |
360mmx360mmx210mm(14.17”x14.17”x8.27”) |
||
| Weight (with packaging) |
10.0(22.05lb) |
||
|
Mechanical properties |
|||
| Insulation |
Tensile strength |
≥16MPa |
|
| Elongation at break |
≥300% |
||
| Peeling property |
No damage to insulation or conductor |
||
| Jacket |
Tensile strength |
Before aging: ≥13.5MPa After aging: ≥12.5MPa |
Before aging: ≥13.5MPa Retention rate of tensile strength after aging: ≥85% |
| Elongation at break |
Before aging: ≥150% After aging: ≥125% |
Before aging: ≥150% Retention rate of elongation at break after aging: ≥50% |
|
| Aging condition |
100℃*24h*7d |
||
| Peeling property |
No damage to insulation, cold bending (-20C *4h), the outer diameter of the cable is 8 times, without cracking. |
No damage to insulation, cold bending (-15C *4h), the outer diameter of the cable is 8 times, without cracking. |
|
|
Electrical performance (20℃) |
|||
| Characteristic impedance (1-250MHz) |
100±15Ω |
||
| DC resistance |
≤9.5Ω/100m |
||
| Max. unbalance rate of line pairs’ direct current |
≤5% |
||
| Time delay |
≤45ns/100m |
||
| Max. mutual capacitance |
5.6nF/100m |
||
| Min. insulation resistance |
5000MΩ·km | ||
