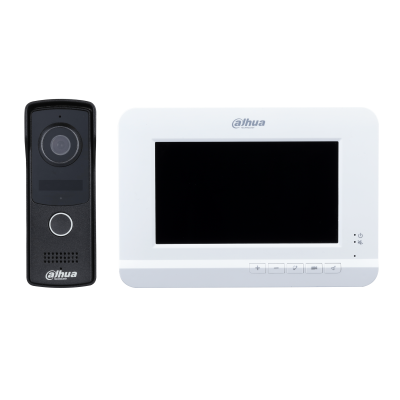

Dahua 4-Wire Indoor Monitor Kit

DHI-VTO2010D

Button Type

Mechanical keyboard keys

Camera

1/2.7” 2MP CMOS

Field of View

H:70°, V:38°, D:82°

Focal Length

3.3 mm

IR

Support

Audio In

1 channel to the microphone, pickup distance 0.5m

Audio Out

1 channel to the speaker

Indicator Light

1 indicator light; Green: Power on

Communication Method

Analog

Unlock Mode

Local unlock

Exit Button

1

Appearance Color

Black

Installation Mode

Surface

Certification

CE FCC

Dimensions

134.9 mm × 47.2 mm × 33.8 mm (5.31" × 1.86" × 1.33")

Protection Grade

IK07, IP65(Apply silica gel to gaps between the device and the wall.Liquid sodium silicate is recommended. For details, see the quick start guide.)

Operating Temperature

-30° C to +50° C (-22°F to +122°F)

Operating Humidity

10%RH –95%RH

Power Consumption

≤1W (standby mode)

≤3W (operating)

Net Weight

0.19 kg (0.42 lb)

DHI-VTH2020DW

Button Type

Mechanical keyboard keys

Screed Type

Non-touch screen

Display

7 inch TFT display

Resolution

800 (H) × 480 (V)

Status indicator Light

2 indicator lights Power: Indicator light green-Power on  Volume: Indicator light off-Mute

Communication Methods

Analog

Housing Material

PC+ABS

Appearance Color

White

Power Supply Mode

12V DC 2A

Power Source

Optional

Installation Mode

Surface

Certification

CE FCC

Dimensions

220.5 mm × 153.5 mm × 26.8 mm (8.68" × 6.04" × 1.06")

Operating Temperature

-10° C to +55° C (+14°F to +131°F)

Operating Humidity

10%RH–95%RH

Power Consumption

≤2W (standby mode)
≤5W (operating)

Net weight

0.39 kg (0.86 lb)
