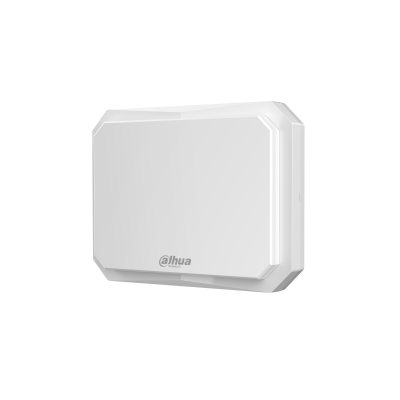

Dahua 450m Intrusion Detection Security Radar

Performance

Max. Number of Targets

32

Detection Distance

Human: 450.0 m (1476.38 ft) Vehicle: 600.0 m (1968.50 ft)

Detection Angle

Horizontal: 90° Vertical: 13°

Max. Detection Speed

80 km/h, continuous trajectory

Min. Detection Speed

1.8 km/h, continuous trajectory

Distance Accuracy

± 1.5 m (± 4.92 ft)

Angle Accuracy

± 1°

Max. Number of Areas

10

Modulation Type

FMCW

Scan Frequency

8 Hz

Operating Frequency

24 GHz

Detection Target Type

Human and vehicle

Function

Radar+PTZ Smart Tracking

Supported on web manager

Track Mode

Tour, distance priority, and time priority

Region Setting

Alarm area, pre-warning area, and shield area

Target Filtering

Human and vehicle filtering

Record Mode

Manual record, scheduled record, and alarm record Record priority: Manual>Alarm>Scheduled

Restore to Factory Default

Restore to default settings with one click

Security

Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control

Positioning

GPS, Glonass

Map Encoding

Yes

Network

Ethernet

RJ-45 (10Base-T/100Base-TX)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, and 802.1x

Interoperability

ONVIF Profile S&G, CGI

User Management

19

Storage

NAS; FTP; micro SD card (256 G)

Browser

IE: Versions later than IE7

Google: Versions earlier than Chrome45 Firefox: Versions earlier than Firefox46

Management Software

DSS

Port

Alarm Input

1 channel (support 5V DC potential and 5mA current)

Alarm Output

5 channels (wet contact; support max 12V DC potential and max 300mA current)

Alarm Linkage

Snapshots, radar-PTZ linkage, SD card record, alarm triggering output, electronic map displaying, and email sending

Alarm Event

Radar alarm, no SD card, insufficient SD card storage, SD card error, network disconnection, IP conflict, full disk, and illegal access

SD Card

Yes

Indicator Light

Network connection: Yellow

Running status: Red/Green Power: Green

Power

Power Supply

DC 12V (±30%), AC 24V (±30%), PoE (802.3at)

Power Consumption

Basic: 20W

Max.: 24W

Environment

Operating Temperature

–40°C to +65°C (–40°F to +149°F)

Operating Humidity

≤95% (RH)

Storage Temperature

–40°C to +80°C (–40°F to +176°F)

Storage Humidity

≤95% (RH)

Protection Grade

IP67/IK10

ESD

Contact discharge: 6k Air discharge: 8k

Surge Protection Grade

Common mode: ± 6kV Differential Mode: ± 2kV

General

Product Color

White

Casing

ADC12+PC

Product Dimensions

244.9 mm × 184.9 mm × 61.2 mm

(9.64" × 7.28" × 2.41")

Packaging Dimensions

328.0 mm × 146.0 mm × 278.0 mm

(12.90"×5.75" × 10.95")

Net Weight

2.0 kg (4.41 lb)

Gross Weight

3.2 kg (7.06 lb)

Installation Method

Wall mount, ceiling mount, pole mount

Installation Height

3.0 m to 5.0 m (3.0 m recommended) (9.84 ft to 16.40 ft) (9.84 ft recommended)

Installation Position

Separate or integrated installation

Certification

Certifications

CE: EN 50385; EN 55032; EN 55024; EN 55035;

EN 50130-4; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 60950-1
CE RED: EN 300440
