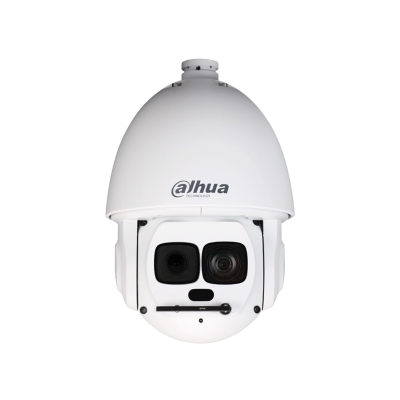

Dahua 4MP 45x Starlight Laser WizMind PTZ Network Camera

Camera

Image Sensor

1/2.8" CMOS

Pixel

4MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

4GB

RAM

1GB

Electronic Shutter Speed

1/1 s –1/30000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005Lux@F1.6
B/W: 0.0005Lux@F1.6
0Lux (IR light on)

Illumination Distance

300 m (984.25 ft)

Illuminator On/Off Control

Zoom Prio/Manual/SmartIR/Off

Illuminator Number

7

Wiper

Support

Lens

Focal Length

3.95 mm–177.7 mm

Max. Aperture

F1.6–F4.9

Field of View

H: 70.3°–1.8°; V: 37°–1°; D: 69.3°–2°

Optical Zoom

45x

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

0.01 m–3 m (0.03 ft–9.84 ft)

Iris Control

Auto

DORI Distance

Detect

Observe

Recognize

Identify

3554 m (11660.10 ft)

1421.6 m
(4664.04 ft)

710.8 m (2332.02 ft)

355.4 m (1166.01 ft)

PTZ

Pan/Tilt Range

Pan: 0°–360° endless
Tilt: –20°–+90°, auto flip 180°

Manual Control Speed

Pan: 0.1°–200°/s
Tilt: 0.1° –120°/s

Preset Speed

Pan: 240°/s; Tilt: 200°/s

Presets

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Support

Idle Motion

Preset/Tour/Pattern/Scanning

Protocol

DH-SD
Pelco-P/D (auto recognition)

General Intelligence

Event Trigger

Motion detection, video tampering, scene changing, network disconnection, IP address conflict, illegal access, and storage anomaly

IVS

Object abandoned/missing

Artificial Intelligence

Smart Capture

Support human, motor vehicle and non-motor vehicle image capture.

Perimeter Protection

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

Face Detection

Support

SMD PLUS

Support

Video

Compression

H.265; H.264B; H.264M; H.264H; MJPEG; MPEG4; H.265+; H.264+; MJPEG (sub stream)

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × 1080); 720P (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Frame Rate

Main stream: 4M/3M (1–25/30 fps), 1080P/1.3M/720P (1–25/30 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1080P (1–25/30 fps), 720P (1–25/30 fps)

Bit Rate Control

Variable/Constant

Bit Rate

Main stream with default resolution:
H.264: 3 Kbps–20480 Kbps
H.265: 3 Kbps– 20480 Kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Support

WDR

120dB

HLC

Support

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D/3D

Motion Detection

Support

Region of Interest (RoI)

Support

Image Stabilization

Electronic

Defog

Digital

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas, and up to 8 areas in the same view

Audio

Compression

G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP

Interoperability

ONVIF Profile S&G&T; CGI

Streaming Method

Unicast/Multicast

User/Host

19

Storage

FTP; Micro SD card (256G); P2P

Browser

IE7 and later versions
Chrome 42 and earlier versions
Firefox 52 and earlier versions
Safari

Management Software

Smart PSS; DSS; DMSS; Easy4ip; IVSS

Mobile Phone

IOS; Android

Certification

Certifications

CE: EN62368-1; EN55032; EN61000-3-2; EN61000-3-3; EN55024; EN55035; EN50130-4
FCC: 47 CFR FCC Part15, SubpartB, ClassA; ANSI C63.4: 2014

Port

RS-485

1 (Baud rate range: 1200 bps–115200 bps)

Audio Input

1

Audio Output

1

Alarm I/O

7/2

Power

Power Supply

DC36V/2.23A; HI-PoE

Power Consumption

Basic: 20W
Max.: 36W (IR light and PTZ on at minimum voltage)

Environment

Operating Temperature

–40°C ~ 70°C (-40°F to 158°F)

Operating Humidity

≤95%

Protection

IP67; TVS 8000V lightning proof; Surge protection

Structure

Casing

Metal

Dimensions

382 mm × Φ240 mm (15.04" x Φ9.45")

Net Weight

6.5 kg (14.33 lb)

Gross Weight

8.9 kg (19.62 lb)
